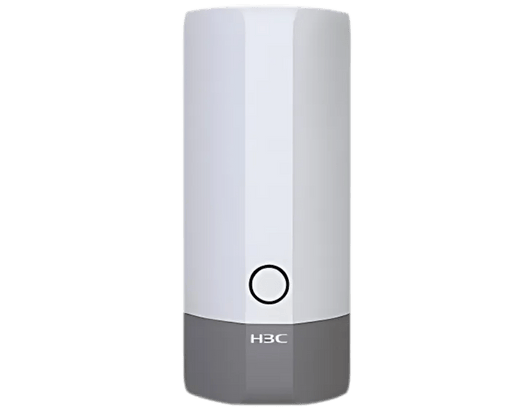

Wifi 6 ngoài trời H3C EWP-WA6120X

Giá: 7.494.000 VNĐ Đã có VAT

MSSP: EWP-WA6120X

Đặt hàng:

Dòng sản phẩm phù hợp cho doanh nghiệp, khách sạn, resort, trường học, bệnh viện,…

Lượt xem: 301

KHUYẾN MÃI

Miễn phí hướng dẫn sử dụng và cài đặt từ xa cho khách hàng ở xa.

Miễn phí giao hàng, cài đặt và hướng dẫn sử dụng khu vực HCM.

Chính sách bán hàng

Đặt hàng qua điện thoại

Xin vui lòng gọi

Hotline: 0903020002

Hỗ trợ trực tuyến

Vũ Huy Sơn

Bộ phát Wi-Fi ngoài trời EWP-WA6120X- Ordinary AP (WI-FI 6 tốc độ 1.775Gbps)

- CPU: Qualcomm Chip

- DDR/FLASH：512MB/128MB

- Ăng ten trong: công suất 4dBi, phát đa hướng

- 2 cổng Uplink 10/100/1000Base-T, 1 cổng console

- Băng tần không dây: dual-band 2.4GHz: 802.11n/g/b và 5GHz: 802.11ax/ac/n/a

- Tốc độ không dây: 1.775 Gbps (2.4GHz: 0.575 Gbps, 5GHz: 1.2 Gbps)

- Hỗ trợ công nghệ Wi-Fi 6 (802.11ax): TWT, BSS Color, MU-MIMO, OFDMA, Only 11ax

- Hỗ trợ kết nối đồng thời 100 người dùng, 8 SSID

- Roaming: hỗ trợ chuyển vùng liền mạch giao thức 11k/v/r, tối ưu chuyển vùng liền mạch

- Vùng phủ sóng: lên đến 80m bán kính

- Chế độ hoạt động: FIT (AC) / FAT (Cloudnet)

- Tính năng không dây:
+ Cân bằng tải người dùng, quản lý băng thông, User isolation, 802.1X authentication, MAC address authentication, PSK authentication, Portal authentication
- Mã hoá: TKIP, CCMP, WPA3, and WAPI, Multiple encryption key triggered dynamic unicast/multicast key update
+ Open system/shared key authentication
+ Enhanced open system authentication
+ Mixed access of WPA, WPA2, WPA3, and Pre-RSNA users

- Nền tảng quản lý và bảo trì: Centralized AC management, Cloudnet, Local Web, Telnet, SSH, Debug serial port, Smart O&M

- Nguồn cấp: PoE 802.3at/af, công suất tiêu thụ ≤ 16.32 W

- Tiêu chuẩn bảo vệ: IP67

- Kích thước: 250mm x 101mm x 110mm (H x W x D)

Hardware specifications

Name	WA6120X
Dimensions (excluding antenna connectors and mounting accessories)	250 × 101 × 110 mm
Fixed port	2 × 10/100/1000M electrical port
Power supply	PoE injector
Built-in antenna	Internal Omni-directional antenna 3dBi antenna gain @2.4GHz 5dBi antenna gain @5GHz
Working frequencies	802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz; 5.47 GHz - 5.725 GHz; 5.15 GHz - 5.35 GHz 802.11ax/b/g/n: 2.4 GHz - 2.483 GHz
Modulation technology	OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM(11n): MCS 0-15 MIMO-OFDM(11ac): MCS 0-9 MIMO-OFDM(11ax): MCS 0-11
Modulation mode	11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM 11ac/ac wave2: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Transmit power (combined power)	23 dBm (Varies depending on local laws and regulations)
Adjustable power granularity	1 dBm
Power consumption	≤16.32W
Reset/restoration to factory default	Supported
State LED	Alternating flashing mode, orange/green/blue for different working states, breathing mode
Operating temperature/storage temperature	-30ºC to +55ºC/-40ºC to +70ºC
Operating humidity/storage humidity	0% - 100% (non-condensing)
Protection degree	IP67
Safety compliance	GB 4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1
EMC	EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 60601-1-2, EN 301 489-1, EN 301 489-17
Environment	GB/T 2423, GB/T 13543, GB 4208
Radio frequency certification	FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC
MTBF	2266650H

Software specifications

Name		WA6120X
Positioning		Outdoor AP (5 GHz 22 MIMO + 2.4 GHz 22 MIMO)
Operating mode	Fit mode	Controlled by AC
	Cloud mode (Fat mode)	Controlled via Cloudnet or operates independently
	Mode switching	Mode switching via command lines, ACs, Cloudnet, or reset button
11ax supported	Maximum Wi-Fi 6 (802.11ax) transmission speed	1.2 Gbps + 0.575 Gbps
	TWT	Supported
	BSS Color	Supported
	MU-MIMO	Supported
	OFDMA	Supported
	Only 11ax	Supported
WLAN basics	Working frequencies	5 GHz + 2.4 GHz
	A-MPDU	Supported
	A-MSDU	Supported
	Maximum likelihood demodulation (MLD)	Supported
	Maximal ratio combining (MRC)	Supported
	Spatial-Time block coding (STBC)	Supported
	Low-density parity check (LDPC)	Supported
	Recommended number of clients	100
	Maximum number of SSID	8
WLAN extended	STA related	STA offline anomaly check, STA aging, statistics and status query
	User number limit	Supported
	Link integrity check	Supported
	Broadcast probe acknowledgment control	Supported
	Prohibition of client access with weak signals	Supported
	Hidden SSID	Supported
	WLAN RRM	Supported
	Wireless bridging	Supported
	Repeater mode	Supported
	11k	Supported
	11v	Available in Fit mode
	11r	Available in Fit mode
Security control policies	Encryption	TKIP, CCMP, WPA3
	Encryption	Multiple encryption key triggered dynamic unicast/multicast key update
	802.11i	Supported
	Authentication	802.1X authentication, MAC address authentication, PSK authentication, Portal authentication; Open system/shared key authentication; Enhanced open system authentication Mixed access of WPA, WPA2, WPA3, and Pre-RSNA users
	User isolation	Layer 2 user isolation SSID-based user isolation
	Forwarding security	Packet filtering, MAC address filtering, and broadcast storm suppression
	Wireless endpoint access	Wireless EAD supported
	SSID and VLAN binding	Supported
	Wireless Intelligent Application Aware (wIAA)	Supported
	WIDS/WIPS	Supported
	MFP (802.11w)	Supported
	802.1X Client	Supported
AAA	Radius Client	Supported
	Multiple-domain authentication server	Supported
	Backup authentication server	Supported
Layer 2 and layer 3 features	IP address configuration	Static IP or DHCP assigned IP (option 60)
	Native IPv6	Supported
	IPv6 Portal	Supported
	IPv6 SAVI	Supported
