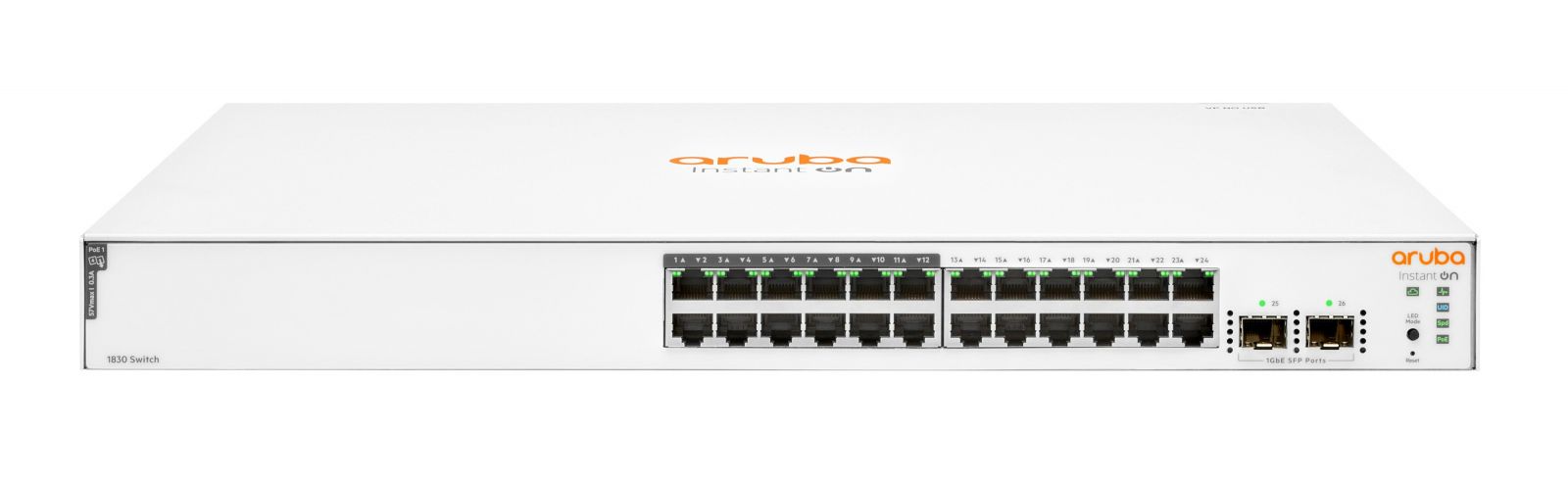

Switch Aruba Instant On 1830 24G 12P CL4 2SFP 195W (JL813A)
Switch Aruba JL813A là thiết bị chuyển mạch tiêu chuẩn rack 1U có quạt làm mát, thiết kế 24 cổng RJ-45 tích hợp tính năng Autosensing (10/100/1000), Auto-Port Shutdown trong đó có 12 cổng (Port 1-12) có khả năng cấp nguồn PoE Class 4 195W, 2 cổng Uplink SFP 1GbE.
JL813A là nền tảng chuyển mạch thông minh sử dụng CPU ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB giúp sản phẩm này có khả năng chuyển mạch (Switching capacity) 52 Gbps, Thông lượng chuyển mạch (Throughput) 38.68 Mpps.
Thông số kỹ thuật Switch Aruba JL813A
Datasheet JL813A | |
Specifications | |
I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports |
Physical Characteristics | |
Dimensions | 253.0(d) x 443.0(w) x 43.9(h) mm |
Weight | 7.65 lb (3.47 kg) |
Memory and Flash | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB |
Performance | |
Throughput (Mpps) | 38.68 Mpps |
Switching capacity | 52 Gbps |
100 Mb latency | < 5.2 uSec |
1000 Mb latency | < 2.8 uSec |
MAC address table size (# of entries) | 16,000 entries |
Reliability MTBF (years) | 96.6 |
Environment | |
Operating temperature | 32°F to 104°F (0°C to 40°C) |
Operating relative humidity | 15% to 95% @ 104°F (40°C) |
Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) |
Nonoperating/ storage relative humidity | 15% to 95% @ 140°F (60°C) |
Altitude | up to 10,000 ft (3 km) |
Acoustics1 | |
Idle | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
100% traffic | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
100% traffic / 0% PoE | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
100% traffic / 50% PoE | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB |
100% traffic / 100% PoE | LWAd = 5.1 Bel LpAm (Bystander) = 35 dB |
Electrical Characteristics | |
Frequency | 50Hz/60Hz |
AC voltage | 100-127VAC / 200- 240VAC |
Current | 2.7A/1.4A |
Maximum power rating | 100-127V: 244.6W 200-220V: 237.2W |
Idle power | 100-127V: 14.5W 200-220V: 13.4W |
PoE power | 195 W Class 4 PoE |
Power supply | Internal power supply |
Safety |
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
Emissions |
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
Immunity | |
Generic | EN 55035, CISPR 35, KN35 |
EN | EN 55035, CISPR 35 |
ESD | EN/IEC 61000 -4-2 |
Radiated | EN/IEC 61000 -4-3 |
EFT/Burst | EN/IEC 61000 -4-4 |
Surge | EN/IEC 61000 -4-5 |
Conducted | EN/IEC 61000 -4-6 |
Power frequency magnetic field | EN/IEC 61000 -4-8 |
Voltage dips and interruptions | EN/IEC 61000-4-11 |
Harmonics | EN/IEC 61000 -3-2 |
Flicker | EN /IEC 61000-3-3 |
Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
Mounting | |
Mounting positions and supported racking |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided |
