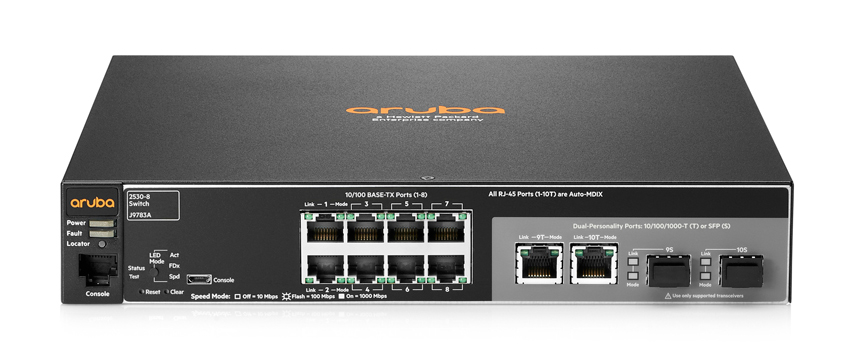

Switch Aruba 2530 8 Ports 10/100, 2 Combo Uplink Ports (J9783A)

Giá: Liên hệ

MSSP: J9783A

Đặt hàng:

Switch Aruba J9783A 2530 8 Ports 10/100, 2 Combo Uplink Ports, 2 dual-personality ports; RJ-45 10/100/1000 or SFP slot

Lượt xem: 95

Đặt hàng qua điện thoại

Xin vui lòng gọi

Hotline: 0903020002

Hỗ trợ trực tuyến

Vũ Huy Sơn

Thiết bị chuyển mạch Aruba J9783A cung cấp 8 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Media Type: Auto-MDIX; Duplex: half or full, 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports.

Thiết bị chuyển mạch Aruba J9783A được tăng cường bảo mật bằng cách sử dụng các công nghệ virtual LANs, link aggregation, hoặc IGMP Snooping boost uplink performance, và loop prevention enhances network reliability. Switch Aruba J9783A sử dụng điện AC 220V.

Switch Aruba network J9783A cho phép dễ dàng quản lý ngay cả bởi người dùng không biết kỹ thuật thông qua giao diện Wed trực quan, hỗ trợ HTTP và HTTP Secure (HTTPS)

Thiết bị chuyển mạch Aruba J9783A được thiết kế theo chuẩn EIA 1U phù hợp với tất cả các loại tủ rack hoặc gắn trên tường.

Thông số kỹ thuật chi tiết của switch Aruba J9783A

I/O ports and slots	8 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Media Type: Auto-MDIX; Duplex: half or full 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports
Additional ports and slots	1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics	Dimensions: 10.00(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height) Weight: 1.8 lb (0.82 kg)
Memory and processor	ARM9E @ 800 MHz, 128 MB flash; Packet buffer size: 1.5 MB dynamically allocated, 256 MB DDR3 DIMM
Mounting and enclosure	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting
Performance	100 Mb Latency < 1.3 µs (LIFO 64-byte packets) 1000 Mb Latency < 1.3 µs (LIFO 64-byte packets) Throughut up to 4.1 Mpps (64-byte packets) Switching capacity: 5.6 Gbps MAC address table size: 16000 entries
Environment	Operating temperature: 32°F to 113°F (0°C to 45°C) Operating relative humidity: 5% to 95%, noncondensing Nonoperating/Storage temperature:-40°F to 158°F (-40°C to 70°C) Nonoperating/Storage relative humidity:15% to 95% @ 149°F (65°C), noncondensing Altitude: up to 10,000 ft (3 km) Acoustic: Power: 0 dB, Pressure: 0 dB
Electrical characteristics	Frequency: 50/60 Hz Maximum heat dissipation: 25 BTU/hr (26.38 kJ/hr) Voltage: 100 - 240 VAC, rated Maximum power rating: 7.2 W Idle power: 4.5 W Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical : maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated
Safety	UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
Emissions	FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
Management	IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
