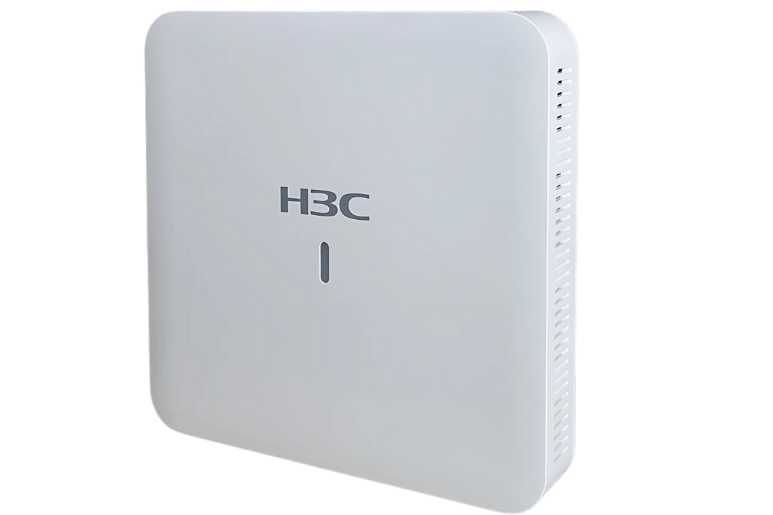

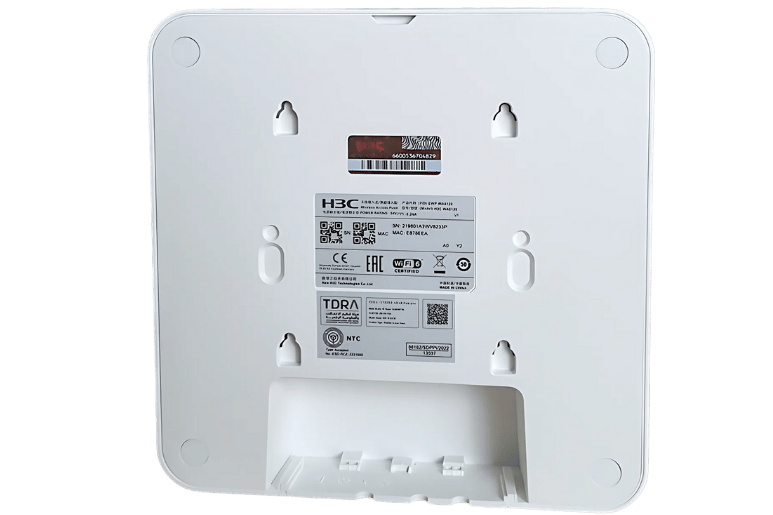

Wifi 6 gắn trần H3C EWP-WA6120

Giá: 3.490.000 VNĐ Đã có VAT
MSSP: EWP-WA6120
Đặt hàng:
Dòng sản phẩm phù hợp cho doanh nghiệp, khách sạn, resort, trường học, bệnh viện,…
Lượt xem: 359

Đặt hàng qua điện thoại

Xin vui lòng gọi

Hotline: 0903020002
Hỗ trợ trực tuyến
Vũ Huy Sơn zalo
Bộ phát Wi-Fi trong nhà - Ordinary AP (WI-FI 6 tốc độ 1.775Gbps)
- CPU: Qualcomm Chip
- DDR/FLASH:512MB/128MB
- Ăng ten trong: công suất 4dBi, phát đa hướng
- 1 cổng Uplink 10/100/1000Base-T, 1 cổng console
- Băng tần không dây: dual-band 2.4GHz: 802.11n/g/b và 5GHz: 802.11ax/ac/n/a
- Tốc độ không dây: 1.775 Gbps (2.4GHz: 0.575 Gbps, 5GHz: 1.2 Gbps)
- Hỗ trợ công nghệ Wi-Fi 6 (802.11ax): TWT, BSS Color, MU-MIMO, OFDMA, Only 11ax
- Hỗ trợ kết nối đồng thời 100 người dùng, 8 SSID
- Roaming: hỗ trợ chuyển vùng liền mạch giao thức 11k/v/r, tối ưu chuyển vùng liền mạch
- Chế độ hoạt động: FIT (AC) / FAT (Cloudnet)
- Tính năng không dây:
+ Cân bằng tải người dùng, quản lý băng thông, User isolation, 802.1X authentication, MAC address authentication, PSK authentication, Portal authentication
- Mã hoá: TKIP, CCMP, WPA3, and WAPI, Multiple encryption key triggered dynamic unicast/multicast key update
+ Open system/shared key authentication
+ Enhanced open system authentication
+ Mixed access of WPA, WPA2, WPA3, and Pre-RSNA users
- Nền tảng quản lý và bảo trì: Centralized AC management, Cloudnet, Local Web, Telnet, SSH, Debug serial port, Smart O&M
- Nguồn cấp: PoE 802.3at/af hoặc DC 54V - 0.74A, công suất tiêu thụ ≤ 13 W
- Kích thước: 32mm x 180mm x 180mm  (H x W x D)

Hardware specifications

Name

WA6120

Dimensions (excluding antenna connectors and mounting accessories)

32 × 180 × 180 mm (H x W x D)

Fixed port

1 × 10/100/1000M electrical port

PoE

802.3af

Local power supply

54V DC

Console port

1

Built-in antenna

Internal Omni-directional antenna

3dBi antenna gain @2.4GHz

4dBi antenna gain @5GHz

Working frequencies

802.11ax/ac/n/a: 5.725 GHz - 5.850 GHz; 5.47 GHz - 5.725 GHz; 5.15 GHz - 5.35 GHz

802.11ax/b/g/n: 2.4 GHz - 2.483 GHz

Modulation technology

OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps

MIMO-OFDM(11n): MCS 0-15

MIMO-OFDM(11ac): MCS 0-9

MIMO-OFDM(11ax): MCS 0-11

Modulation mode

11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps

11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps

11n: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM

11ac/ac wave2: MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM

11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Transmit power (combined power)

20 dBm (Varies depending on local laws and regulations)

Adjustable power granularity

1 dBm

Power consumption

≤13W

Reset/restoration to factory default

Supported

State LED

Alternating flashing mode, orange/green/blue for different working states, breathing mode

Operating temperature/storage temperature

-10ºC to +55ºC/-40ºC to +70ºC

Operating humidity/storage humidity

5% - 95% (non-condensing)

Safety compliance

GB 4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1

EMC

EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 60601-1-2, EN 301 489-1, EN 301 489-17

Environment

GB/T 2423, GB/T 13543, GB 4208

Radio frequency certification

FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC

MTBF

814581H





Software specifications

Name

WA6120

Positioning

Indoor AP (5 GHz 2*2 MIMO + 2.4 GHz 2*2 MIMO)

Operating mode

Fit mode

Controlled by AC

Cloud mode (Fat mode)

Controlled via Cloudnet or operates independently

Mode switching

Mode switching via command lines, ACs, Cloudnet, or reset button

11ax supported

Maximum Wi-Fi 6 (802.11ax) transmission speed

1.2 Gbps + 0.575 Gbps

TWT

Supported

BSS Color

Supported

MU-MIMO

Supported

OFDMA

Supported

Only 11ax

Supported

WLAN basics

Working frequencies

5 GHz + 2.4 GHz

A-MPDU

Supported

A-MSDU

Supported

Maximum likelihood demodulation (MLD)

Supported

Maximal ratio combining (MRC)

Supported

Spatial-Time block coding (STBC)

Supported

Low-density parity check (LDPC)

Supported

Recommended number of clients

100

Maximum number of SSID

8

WLAN extended

User number limit

Supported

STA related

STA offline anomaly check, STA aging, statistics and status query

Link integrity check

Supported

Broadcast probe acknowledgment control

Supported

Prohibition of client access with weak signals

Supported

Hidden SSID

Supported

WLAN RRM

Supported

Wireless bridging

Supported

Repeater mode

Supported

11k

Supported

11v

Available in Fit mode

11r

Available in Fit mode

Security control policies

Encryption

TKIP, CCMP, WPA3

Multiple encryption key triggered dynamic unicast/multicast key update

802.11i

Supported

Authentication

802.1X authentication, MAC address authentication, PSK authentication, Portal authentication;

Open system/shared key authentication;

Enhanced open system authentication

Mixed access of WPA, WPA2, WPA3, and Pre-RSNA users

User isolation

Layer 2 user isolation

SSID-based user isolation

Forwarding security

Packet filtering, MAC address filtering, and broadcast storm suppression

Wireless endpoint access

Wireless EAD supported

SSID and VLAN binding

Supported

Wireless Intelligent Application Aware (wIAA)

Supported

WIDS/WIPS

Supported

MFP (802.11w)

Supported

802.1X Client

Supported

AAA

Radius Client

Supported

Multiple-domain authentication server

Supported

Backup authentication server

Supported

Layer 2 and layer 3 features

IP address configuration

Static IP or DHCP assigned IP (option 60)

Native IPv6

Supported

IPv6 Portal

Supported

IPv6 SAVI

Supported

ACL

IPv4/IPv
