UniFi Switch Pro XG 48 (USW-Pro-XG-48)
UniFi Switch Pro XG 48 (USW-Pro-XG-48)
Giá: Liên hệ
Để được giá tốt
MSSP: USW-Pro-XG-48
Đặt hàng:
Lượt xem: 55
KHUYẾN MÃI
Miễn phí hướng dẫn sử dụng và cài đặt từ xa cho khách hàng ở xa.
Miễn phí giao hàng, cài đặt và hướng dẫn sử dụng khu vực HCM.
Chính sách bán hàng
Đặt hàng qua điện thoại
Xin vui lòng gọi
Hotline: 0903020002
Hỗ trợ trực tuyến
Vũ Huy Sơn
Dimensions
442 x 480 x 44 mm (17.4 x 18.9 x 1.7")

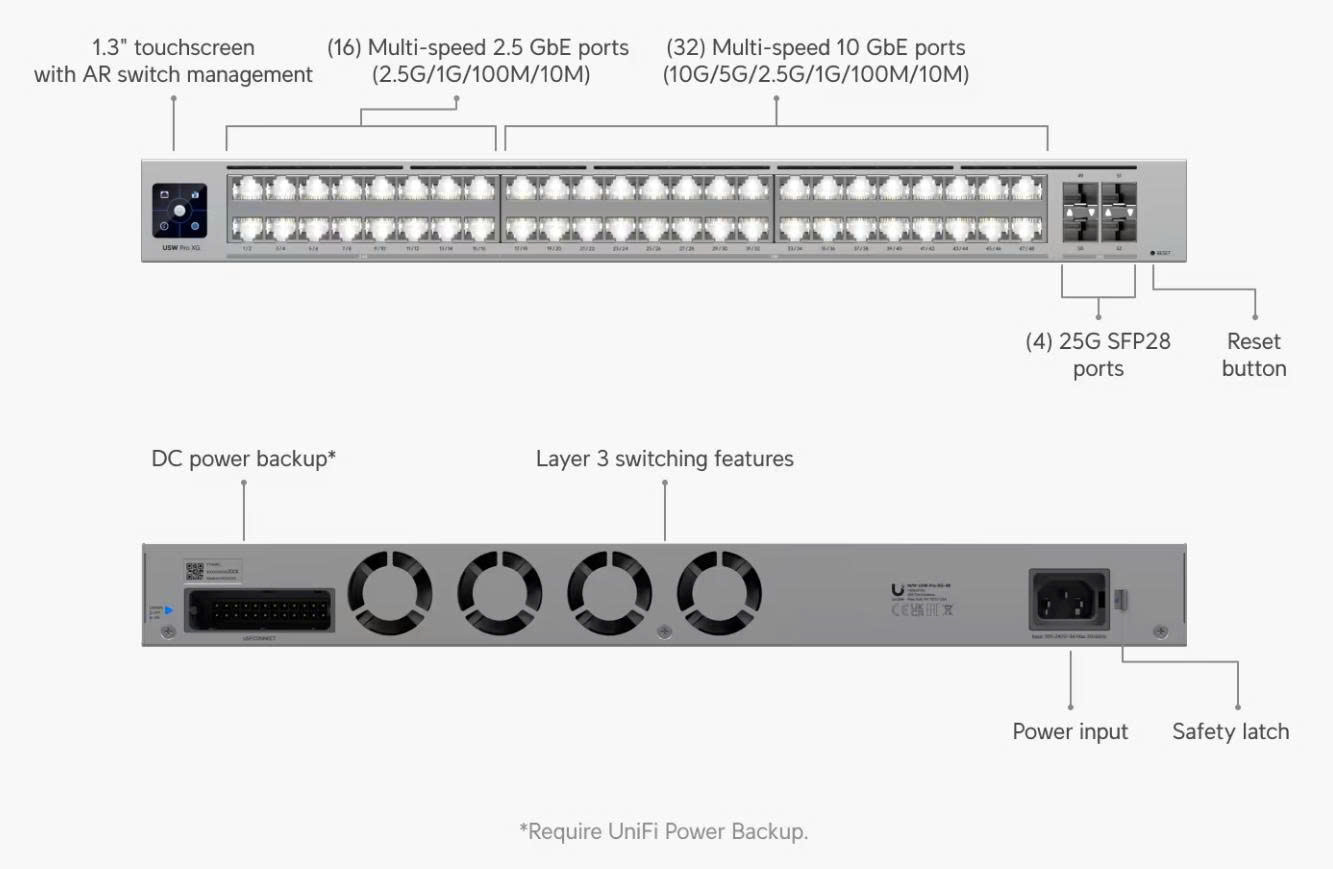

Port Layout
16 (2.5G/1G/100M/10M)
32 (10G/5G/2.5G/1G/100M/10M)
4 (25G/10G/1G)
Redundancy
DC Power Backup
Layer 3
✓
Form Factor
Rack mount (1U)
Etherlighting™
✓
Performance
ARP Entries
IPv4 Routes
IPv4
MAC
Switching Capacity
920 Gbps
Total Non-Blocking Throughput
460 Gbps
Forwarding Rate
684 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
128,000
256,000
Packet Buffer Size
8 MB
Access Lists
256
256
Layer 3 Features
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓
Hardware
RPS
Max. Power Consumption
250W
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 300W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 7.5 kg (16.5 lb) With mounting brackets: 7.6 kg (16.8 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 14kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
LEDs
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 06464-25-08356
Software
UniFi Network
Application Requirements
Version 9.0.114 and later
