Core Switch Ruijie RG-CS88-08 Cloud Managed 10 RU
Giá: Liên hệ Để Đựơc Giá Tốt
MSSP: RG-CS88-08
Đặt hàng:
Lượt xem: 46
KHUYẾN MÃI
Miễn phí hướng dẫn sử dụng và cài đặt từ xa cho khách hàng ở xa.
Miễn phí giao hàng, cài đặt và hướng dẫn sử dụng khu vực HCM.
Chính sách bán hàng
Đặt hàng qua điện thoại
Xin vui lòng gọi
Hotline: 0903020002Hỗ trợ trực tuyến
Vũ Huy Sơn

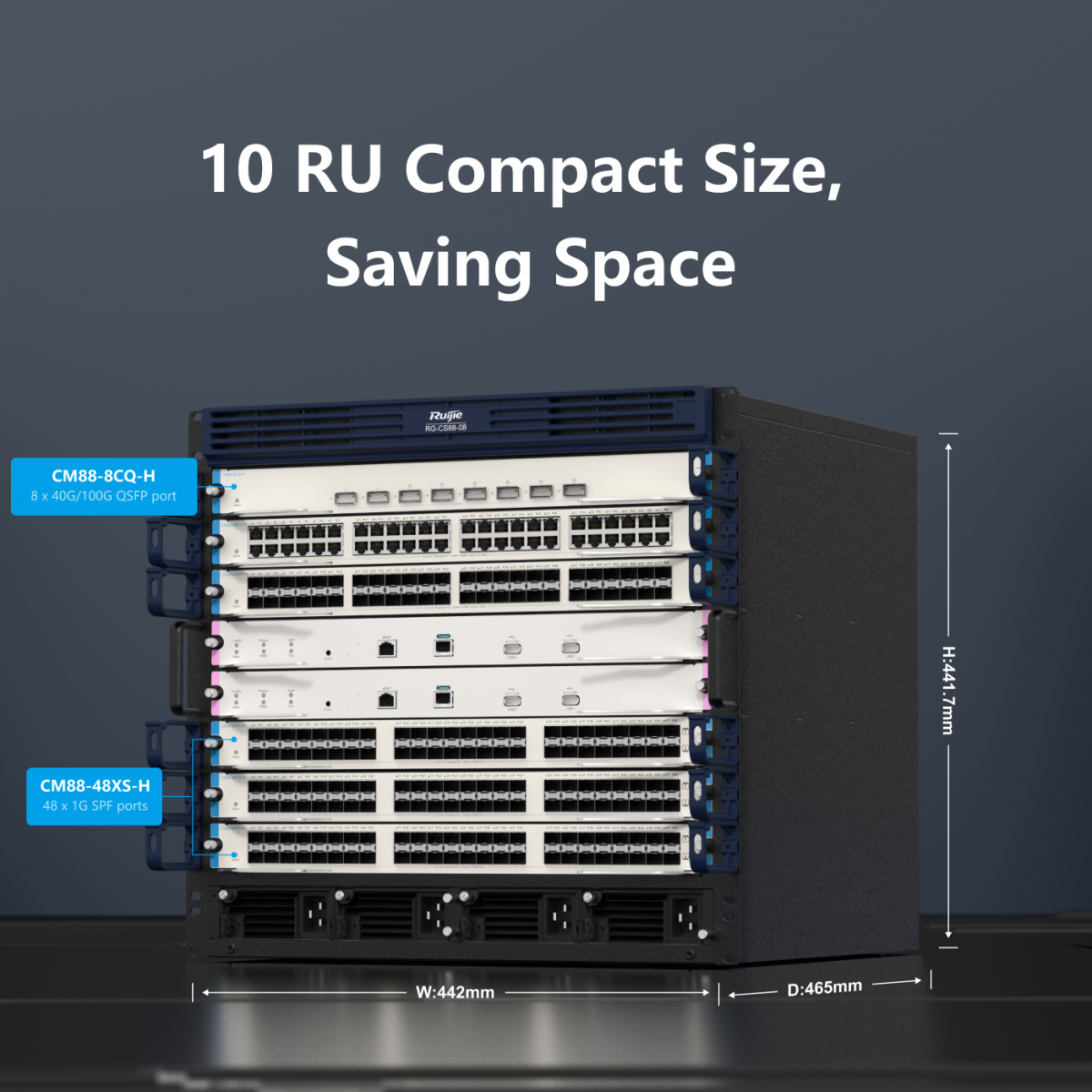

10 RU compact size, saving space
Up to 288 10GE ports on high-density 10GE cards
40GE and 100GE ports, achieving high speed

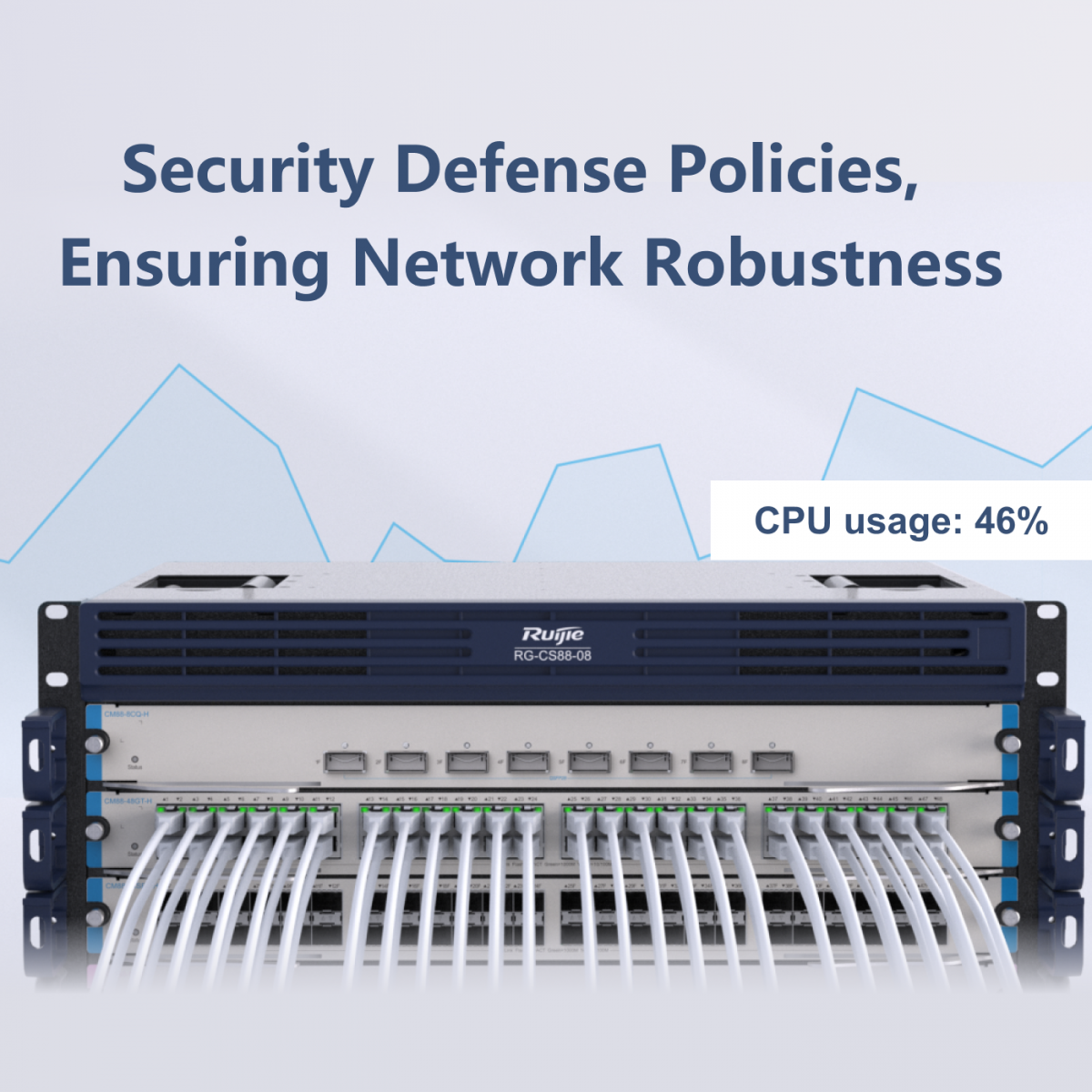

Security defense policies, ensuring network robustness

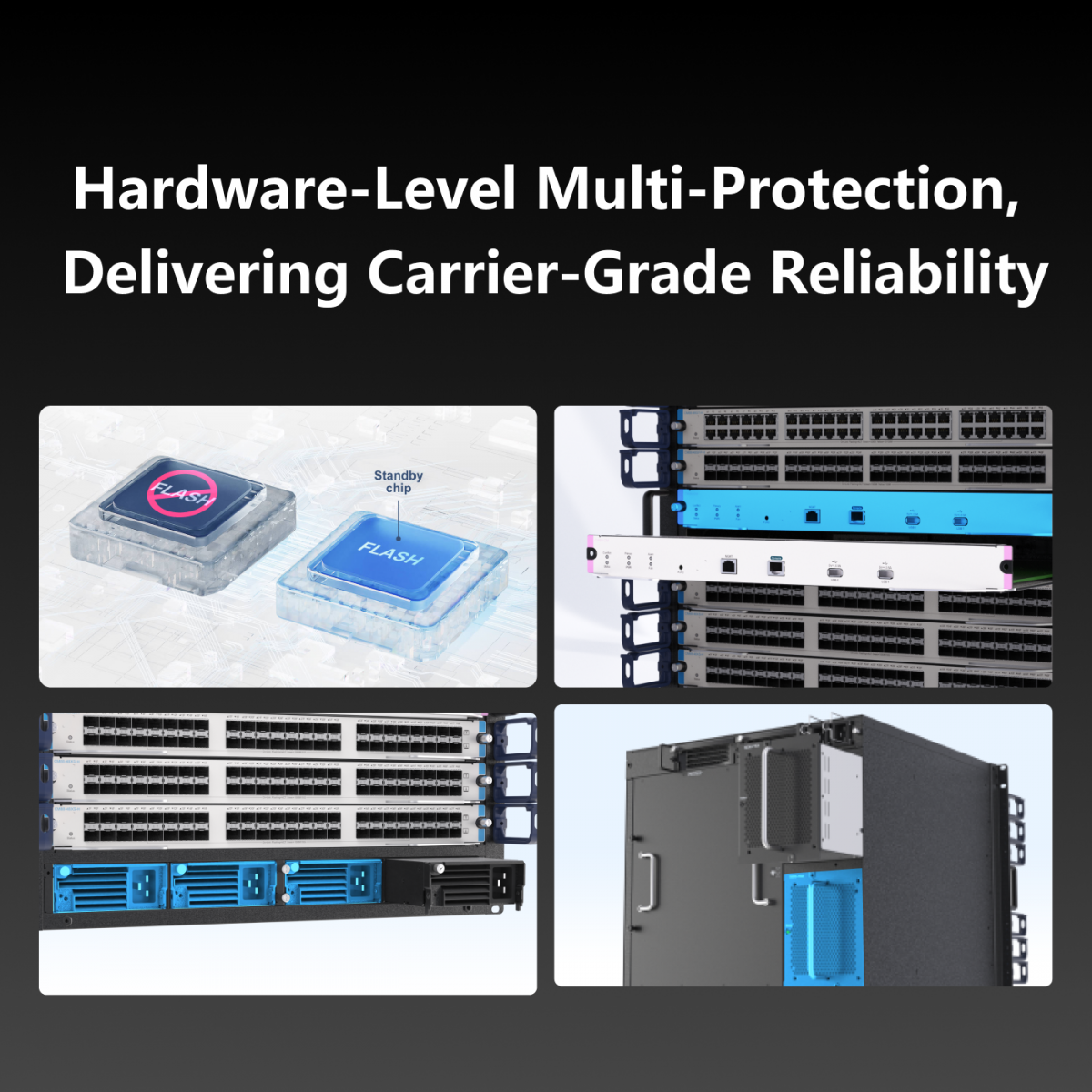

Hardware-level multi-protection, delivering carrier-grade reliability
Cloud, Make Your Business Easy
Specifications
Hardware Specifications
|
Hardware Specifications |
RG-CS88-08 |
|
Interface Specifications |
|
|
Power module |
2 |
|
Supervisor module slots |
2 |
|
Line card slot |
6 |
|
Switch fabric module slot |
2 (integrated with supervisor modules) |
|
System Specifications |
|
|
Switching capacity |
9.6 Tbps |
|
Packet forwarding rate |
7200 Mpps |
|
MAC address table size |
● Number of global MAC addresses EB card: 64,000 DA card: 96,000 (default) and 288,000 (max.) FA card: 80,000 FB card: 96,000 ● Number of static MAC addresses EB card: 4,000 DA card: 10,000 FA card: 4,000 FB card: 40,000 |
|
ARP table size |
EB card: 10,000 (default and recommended) DA card: underlay: 75,000; overlay: 0 (default and recommended) FA card: underlay: 30,000; overlay: 0 FB card: underlay: 50,000; overlay: 0 (default and recommended) |
|
Number of IPv4 unicast routes |
EB card: 12,000 (default and recommended, shared with IPv6 routes) DA card: 12,000 (default and recommended, shared with IPv6 routes) FA card: 12,000 (default and recommended, shared with IPv6 routes) FB card: 134,000 (default and recommended, shared with IPv6 routes) |
|
Number of IPv4 multicast routes |
EB card: 8,000 DA card: 16,000 FA card: 8,000 FB card: 16,000 |
|
Number of IPv6 unicast routes |
EB card: 6,000 (shared with IPv4 routes) DA card: 6,000 (shared with IPv4 routes) FA card: 6,000 (shared with IPv4 routes) FB card: 50,000 (shared with IPv4 routes) |
|
Number of IPv6 multicast routes |
EB card: 4,000 DA card: 8,000 FA card: 4,000 FB card: 8,000 |
|
Number of ACEs |
● Ingress EB card: 3,500 DA card: 8,000 FA card: 5,000 FB card: 4,500 ● Egress EB card: 1,000 DA card: 1,000 FA card: 1,000 FB card: 2,000 |
|
Dimensions and Weight |
|
|
Dimensions (W x D x H) |
442 mm x 465mm x 441.7 mm (17.40 in. x 18.31 in. x 17.39 in.), 10 RU |
|
Weight (empty chassis and fan modules) |
35.6 kg (78.48 lbs) |
|
CPU and Storage |
|
|
CPU |
● Supervisor module M7800C-CM: 1.0 GHz quad-core processor M7808C-CM II: 1.5 GHz quad-core processor ● Service module EA/EB card: 1.0 GHz quad-core processor DA/F card: 1.5 GHz quad-core processor |
|
Storage |
● Flash memory Supervisor module: M7800C-CM/M7808C-CM II: 8 GB Service module: EA card: 512 MB EB card: 512 MB DA/F card: 8 GB ● SDRAM Supervisor module: M7800C-CM: DDR3 4 GB M7808C-CM II: DDR4 4 GB Service module: EB card: DDR3 1 GB DA card: DDR4 1 GB F card: DDR4 2 GB |
|
Power and Consumption |
|
|
Maximum power consumption |
● Chassis RG-S7808C: < 176 W ● Supervisor module: M7808C-CM II: < 50 W ● Service module: M7800C-24SFP/12GT4XS-EB: < 85 W M7800C-36GT12SFP4XS-EB: < 80 W M7800C-48GT4XS-EB: < 70 W M7800C-48SFP4XS-EB: < 101 W M7800C-24GT24SFP4XS-EB: < 88 W M7800C-32XS4QXS-DA: < 210 W M7800C-24XT4QXS-DA: < 245 W M7800C-48GT-FA: < 75 W M7800C-48SFP-FA: < 95 W M7800C-48XS-FB: < 160 W M7800C-4CQ-FB: < 120 W M7800C-8CQ-FB: < 130 W |
|
Maximum output power |
● RG-PA600I-F: 600 W ● RG-PA1600I-F: 90 V AC to 180 V AC power:12,00 W;180 V AC to 264 V AC power: 1,600 W |
|
Environment and Reliability |
|
|
MTBF |
> 200,000 hours |
|
Primary Airflow |
● Supervisor module /Service module Right-to-rear airflow ● System power module Front-to-rear airflow |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Storage temperature |
–40°C to +70°C (–40°F to +158°F) |
|
Operating humidity |
10% to 90% RH (non-condensing) |
|
Storage humidity |
5% to 95% RH (non-condensing) |
|
Operating altitude |
–500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.) |
|
Operating noise |
55.9 dB at the temperature of 27°C (80.6°F) 73.4 dB at the temperature of 45°C (113°F) |
|
Interface surge protection |
Power port: 6 kV Telecom port: 4 kV (MGMT port) |
Software Specifications
|
RG-CS88 Series |
|
|
Feature |
Description |
|
Ethernet Switching |
Jumbo frame (maximum length: 9216 bytes) |
|
Maximum number of VLANs that can be created: 4,094 |
|
|
Super VLAN, Private VLAN |
|
|
MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment |
|
|
GVRP |
|
|
Basic QinQ and selective QinQ |
|
|
STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
|
|
ERPS (G.8032) |
|
|
LLDP/LLDP-MED |
|
|
MPLS |
MPLS IPv6 |
|
MPLS L3VPN |
|
|
MPLS 6VPE |
|
|
MPLS MIB (RFC 1273, RFC 4265, and RFC 4382) |
|
|
IP Service |
Static and dynamic ARP |
|
DHCP client |
|
|
DHCP relay |
|
|
DHCP server |
|
|
DHCP snooping |
|
|
DNS |
|
|
DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping |
|
|
GRE tunnel |
|
|
Manual tunnel, automatic tunnel, and ISATAP tunnel for IPv6 |
|
|
Neighbor Discovery (ND) and ND snooping |
|
|
IP Routing |
Static routing |
|
RIP and RIPng |
|
|
OSPFv2 and OSPFv3 |
|
|
IPv4/IPv6 IS-IS |
|
|
BGP4 and BGP4+ |
|
|
IPv4/IPv6 VRF |
|
|
Policy-based routing (PBR) |
|
|
GR |
|
|
EVPN |
|
|
Multicast |
IGMP v1/v2/v3 |
|
IGMP proxy |
|
|
IGMP snooping v1/v2/v3 |
|
|
IGMP fast leave |
|
|
PIM-DM, PIM-SM, and PIM-SSM |
|
|
PIM-SSM for IPv4 and IPv6 |
|
|
MSDP to achieve inter-domain multicast |
|
|
MLDv1 and MLDv2 |
|
|
MLD v1/v2 snooping |
|
|
Multicast static routing |
|
|
Multicast source IP address check Multicast source port check |
|
|
PIM-SMv6 |
|
|
ACL and QoS |
Standard IP ACLs (hardware ACLs based on IP addresses) |
|
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) |
|
|
Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) |
|
|
Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) |
|
|
ACL80 and IPv6 ACL |
|
|
